vidaXL Silent Bearing Puller Kit for BMW

Description

It is a professional tool for commercial or DIY use. The kit is ideal assistance for you to remove and install ball joints, bushes and bearings for numerous BMW models from 1 Series to 8 Series.

This silent bearings tool set is designed for long life in daily workshop use and categorized into industrial grade. All tools are sorted it in in a blow molded case for easy storage and transportation.

Specifications

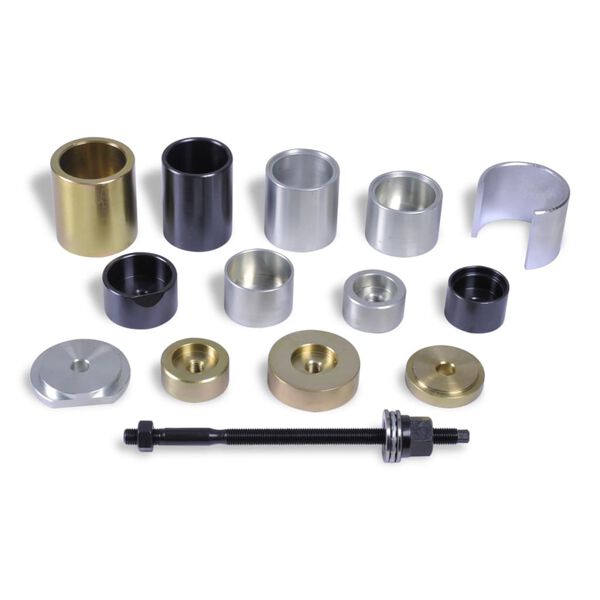

Silent bearing tool set for BMW, 14 pcs as below
A feed rod:
Length: 225 mm
Thread size: M12 x 1.5 mm
Hex drive wrench length: 8 mm
Used for actuating the Silent bearing
A spindle nut:
Thread size: M12 x 1.5 mm
Hexagonal drive wrench length: 19 mm
A compression nut(with axial groove bearing):
Internal thread size: M12 x 1.5 mm
Hexagonal drive wrench length: 24 mm
A support sleeve(side slits):
Outer diameter: 70 mm
Inner diameter 57.5 mm
A support plate:
Hole diameter: 12.5 mm
Outer diameter 70 mm
Trimmed with outer diameter: 57 mm
Height 12.2 mm
A pull-out pressure sleeve:
Internal thread zies: M12 x 1.5 mm
outer diameter: 51 mm
Inner diameter 49.7 mm
Height: 35.2 mm
An intake pressure sleeve:
Internal thread size: M12 x 1.5 mm
Outer diameter: 58 mm
Inner diameter: 47 mm
Height: 43.1 mm
A pull-out spacer sleeve:
Bore diameter: 12.5 mm
Outer diameter: 55 mm
Inner diameter: 46 mm
Height: 72.3 mm
A pull sleeve:
Hole diameter: 12.5 mm
Outer diameter: 45 mm
Inner diameter 36 mm
Height: 30.1 mm
An intake spacer sleeve:
Internal thread size: M12 x 1.5 mm
Outer diameter: 55.1 mm
Inner diameter: 46.5 mm
Height: 30.1 mm
With lateral phase
A spacer sleeve:
Hole diameter: 12.5 mm
Outer diameter: 58 mm
Inner diameter 47 mm
Height: 60.5 mm
A sleeve:
Bore diameter: 12.5 mm
Outer diameter: 65 mm
Inner diameter 50.3 mm
Height: 70.1 mm
A pull-out pressure piece:
Internal thread size: M12 x 1.5 mm
Outer diameter: 48 mm
Inner diameter: 32 mm
Height: 20.1 mm
An intake pressure piece:
Internal thread size: M12 x 1.5 mm
Outer diameter: 65 mm
Inner diameter: 32 mm
Height: 20.3 mm

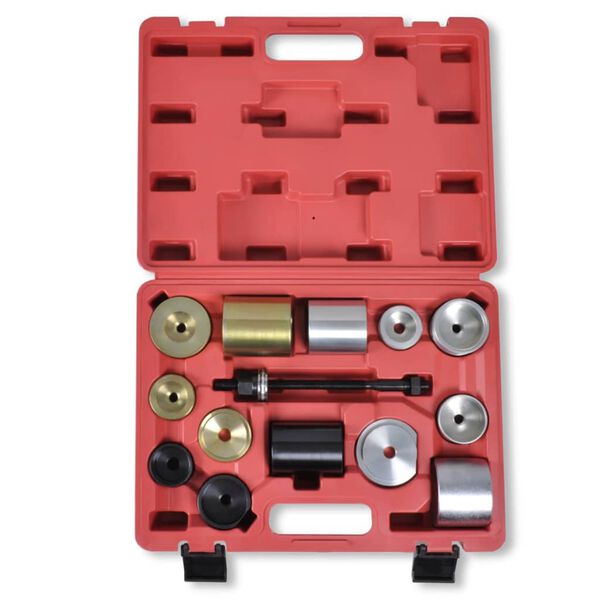

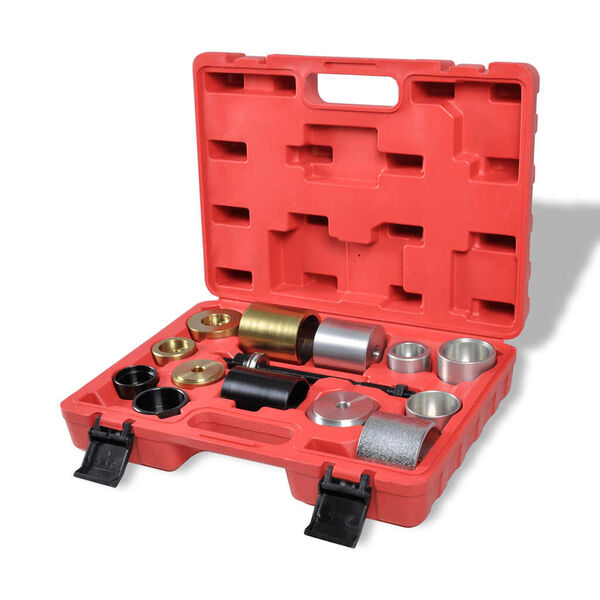

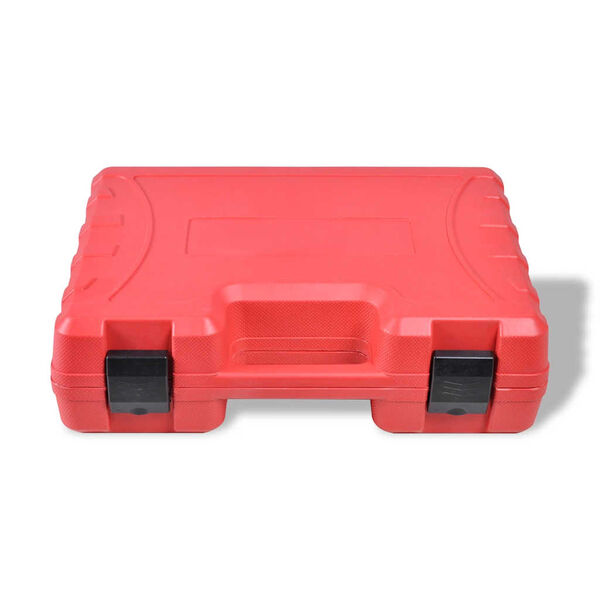

A molded case, various print pieces, stem and pods are included
Allows the renewing of rubber bushings the suspension
Suitable for vehicles from BMW, 1 Series models (e.g. E81 , E87; 3 Series E36, E46, E83, E90, E91, E92, E93; 5 Series models E60, E61, E63; 6 Series models , E64 , E38; 7 Series models, E65, E66, E67; 8 Series models E31, E85 Z4 models, E86, and Mini Cooper S R53 model)
EAN:8718475855750
SKU:210197
Brand:vidaXL

vidaXL Silent Bearing Puller Kit for BMW

Name: vidaXL Silent Bearing Puller Kit for BMW
Brand: vidaXL
SKU: 8718475855750
Price: 58.99 GBP
Availability: InStock

Brand: vidaXL

£ 58.99

Incl. VAT

vidaXL Silent Bearing Puller Kit for BMW

£ 58.99

Incl. VAT

checkmark In Stock

checkmark Free delivery

checkmark Delivery time: 3-5 business days
