vidaXL Tubular Motors with Controller

Description

Featuring powerful traction capacity and programmable timer function, this tubular motor and controller set will be a great choice operating your shutters in offices, residential, hotels, showrooms, villas, and many other places.

This tubular motor is mainly used for automation of awnings, garage doors, rolling shutters and sun screens to name just a few. With low noise, small size, and easy installation, tubular motors have been widely used in offices, residential, hotels, showrooms, villas, and many other places. It is equipped with 1.2 meter cable and mechanical limit switches for easy set-up and regulation.

With our rotary motor controller, operating your shutters, awnings and blinds will be a piece of cake. This controller is suitable to control 1 rotary motor with 24hr / 7d programmable timer function. You can easily set up weekly schedule, or schedule for a certain day. It has 6 easy-operating buttons and a big monochrome display.

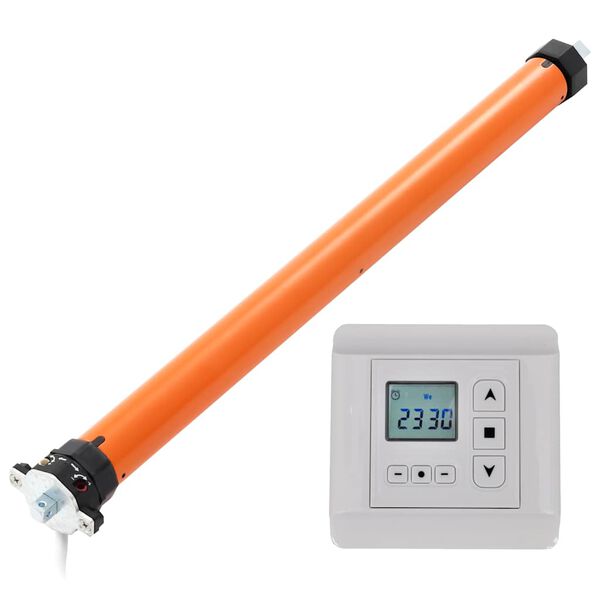

Delivery contains a tubular motor and a controller.

Specifications

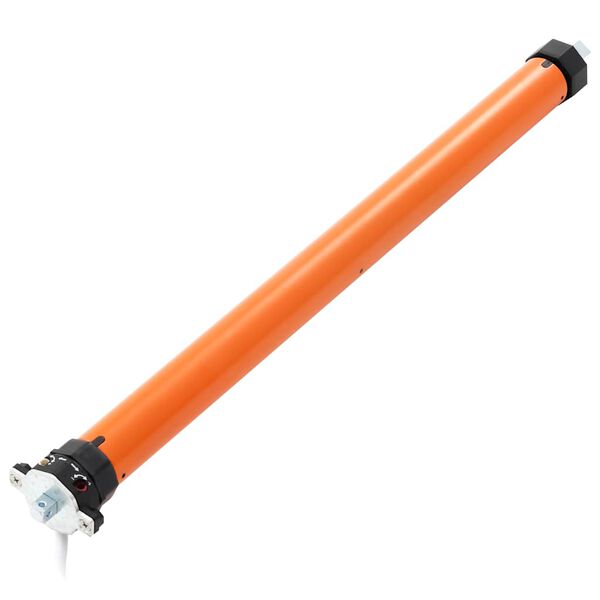

Tubular motors:
Colour: Orange
Material: Metal
Diameter: 35 mm
Output torque: 10 Nm
Power supply: 230 V
Frequency: 50 Hz
Rated power: 125 W
Electric current: 0.55 A
IP rating: IP44
Traction capacity: 20-25 kg
Rolling speed: 17 rpm
With 1.2 m cable
Assembly required: Yes

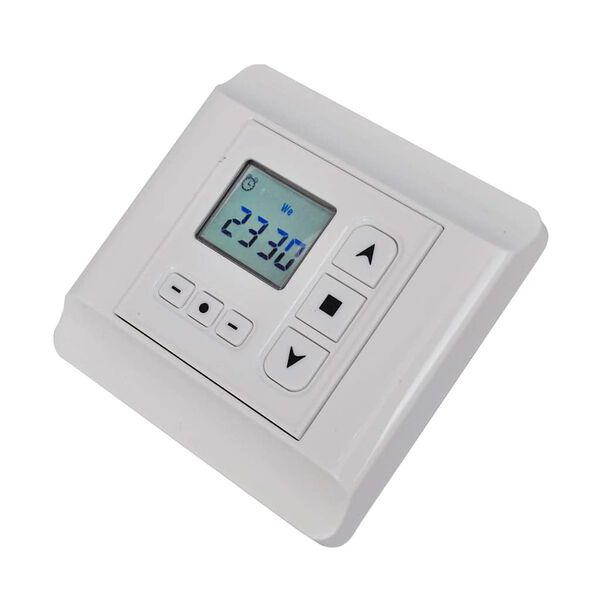

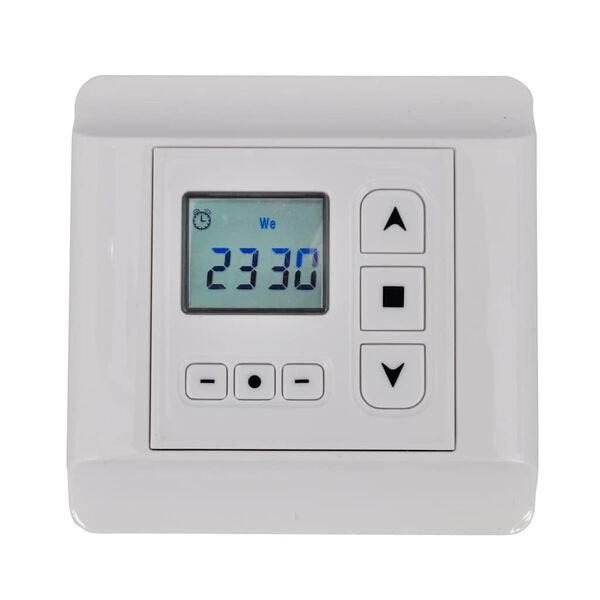

Controller:
Colour: White
Material: Plastic, metal
Dimensions: 80 x 80 x 45 mm (L x W x H)
IP rating: IP30
Power supply: 230 V~
Frequency: 50 Hz
Network load: 400 W
Stand-by consumption: <0.5 W
Duty cycle: 4 min
24hr / 7d programmable timer function: Yes
Assembly required: Yes
Delivery contains:
1 x Tubular motor
1 x Controller
EAN:8719883872766
SKU:3051438
Brand:vidaXL

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safety way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
